Description

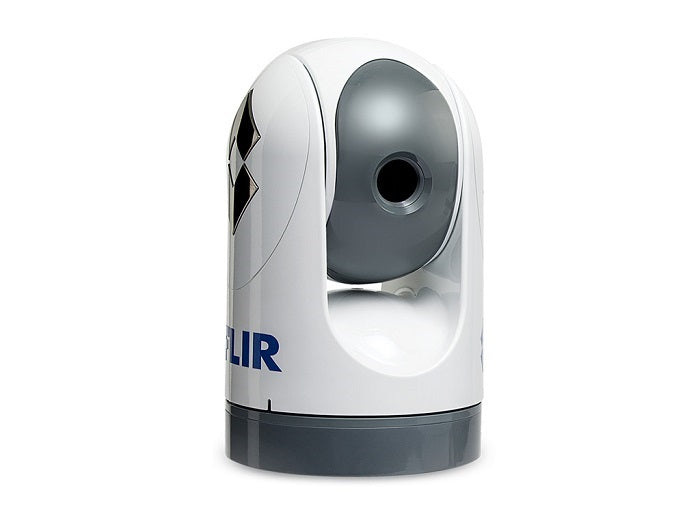

FLIR M-324S 320 x 240 Thermal Camera with JCU
Model: 432-0003-66-00- Advanced features improve situational awareness
- Detects other vessels, small craft, floating objects, and hazards—day or night—through darkness, glare, dust and light fog
- Display on any marine monitor, or integrate M-Series thermal imaging right on your marine multifunction display alongside charting and radar
- Simple joystick control of pan, tilt and zoom. Optional advanced touchscreen control from select marine multifunction displays
- Integrates seamlessly with existing electronics including select multifunction displays from Raymarine, Furuno, Garmin, and Simrad
- Slew-to-Cue target tracking from compatible radar, AIS and chart systems
- Composite video output for easy connection to MFDs and monitors
- Engineered especially for harsh marine environments
- Color symbology on-screen gives instant access to system status, position, and configuration
- 360° Continuous Pan, +/-90° Tilt with joystick control
- Gyro-stabilization - Now standard across the entire M-Series line
- Latest Generation Thermal Detector - For sharper details and better image quality
The M-Series pan/tilt re-defines maritime multi-sensor system design, drawing on FLIR’s 25 years of experience in building combat-proven airborne and maritime thermal imagers for militarys, coast guards, and governmental agencies around the world. With up to 320 x 240 thermal imaging, M-Series cameras let you see more — and see farther — than ever before. Even in the dead of night.
The M-Series creates thermal images with tremendous detail for such an affordable night vision system. You will see more—and see farther—even in the dead of night. And M-Series cameras also feature detailed, color on-screen symbology for instant access to system status, position, and configuration. Resolution (320 x 240 324 Series or 640 x 480 625 Series pixels) is model dependent.
Specifications| Main Thermal Camera | |
| Detector Type | 320 240 VOx Microbolometer |
| Video Refresh Rate | 30Hz NTSC |
| Field of view | 24° 18° |
| Focal Length | 19mm |
| Focus | Fixed 12ft (3.6m) to infinity |
| Continuous E-Zoom | 2x |
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| MAIN VISIBLE CAMERA | |
| Detector Type | N/A |
| Lines of Resolution | N/A |
| Minimum Illumination | N/A |
| Optical Zoom | N/A |
| E-Zoom | N/A |
| SYSTEM SPECIFICATIONS | |
| Video Tracking | No |
| Firefighter Mode | No |
| Pan/Tilt Adjustment Range | 360° Continuous Pan, +/-90° Tilt |
| Analog Video Output | 30 Hz NTSC |
| Analog Video Connector Types | F-type BNC with BNC-to-RCA adapter included for video out |
| Network Video Output | No |
| HD-SDI Lossless Video Output | No |
| Power Requirements | 12-24 V DC |
| Power Consumption | 25 W nominal; 50 W max |
| ENVIRONMENTAL | |
| Operating Temperature Range | -13°F to +131°F (-25°C to +55°C) |
| Storage Temperature Range | -40°F to +185°F (-40°C to +85°C) |
| Automatic Window Defrost | Standard at Power-Up |
| Sand/Dust Ingress | Mil-Std-810E |
| Water Ingress | IPX 6 (heavy seas, powerful jets of water) |
| Shock | 15g vertical, 9g horizontal |
| Vibration | IEC 60945; MIL-STD-810E |
| Lightning Protection | Standard |
| Salt Mist | IEC60945 |
| Wind | 100 knot (115.2 mph) |
| EMI | IEC 60945 |
| PHYSICAL | |
| Weight | ~ 9 lbs (4 kg) |
| Size | 7"" (177.8 mm) dia. 11.2"" (284.4 mm) ht. |
| RANGE PERFORMANCE | |
| Person in the Water | 1,500ft (457m) |
| Small Vessel | 4,200ft (1,280m) |
What's in the Box:
- 324S Thermal Camera
- JCU with weather cover
- Weather proof Ethernet coupler
- 25' Ethernet cable
- Mounting hardware
- Users guide
