Description

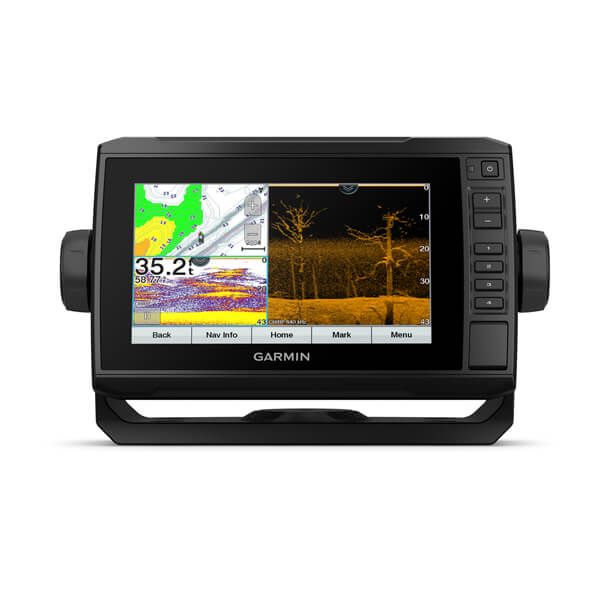

Garmin ECHOMAP UHD 73CV Combo US Lakevu g3 - Remanufactured
Model: 010-N2334-01- See below your boat in incredible detail with included transducer
- Navigate any waters with preloaded LakeVü g3 inland maps
- Share data with other devices on your network (7" and 9" models only)
- Manage your marine experience from nearly anywhere
- Control the most powerful trolling motor available
- Create your own maps on the fly and tailor them to fit your needs
The sunlight-readable 7" touchscreen chartplotter features a quick-release bail mount and a transducer for Ultra High-Definition scanning sonar and CHIRP traditional sonar.
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.
This chartplotter comes with a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data that covers more than 17,000 lakes with up to 1’ contours.
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7" and 9" models only).
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more.
Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Specifications| General | |
| Physical dimensions | 9.8"" x 5.5"" x 2.0"" (25 x 13.9 x 5.1 cm) |
| Display size | 6.1"" x 3.4""; 7.0"" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal) |
| Display resolution | 400 x 800 pixels |
| Display type | WVGA display |
| Weight | 1.7 lbs.(0.77kg) |
| Water Rating | IPX7 |
| Power consumption | 15W |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Bail or flush |
| Receiver | 5 Hz |
| Garmin Marine Network™ ports | None |
| Maps & Memory | |
| Preloaded maps | LakeVü g3 (inland maps) |
| Accepts data cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Garmin Sonar compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Sailing Features | Yes |
| Sonar Features & Specifications | |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Transmit power | 500 W (RMS) / 4,000 W (peak to peak) |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes with CHIRP (built-in) |
| SideVü | No |
| Maximum depth | 2,300 ft @ 77 kHz, freshwater |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Sonar history rewind | Yes |
| Connections | |
| NMEA 2000® compatible | Yes |
| Transducer pin numbers | 8 |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | None |
| Video output ports | None |
| Wireless connectivity | Yes |
What's in the Box:
- ECHOMAP UHD 73cv with LakeVü g3 for U.S. - remanufactured
- GT24UHD-TM transducer
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
