Description

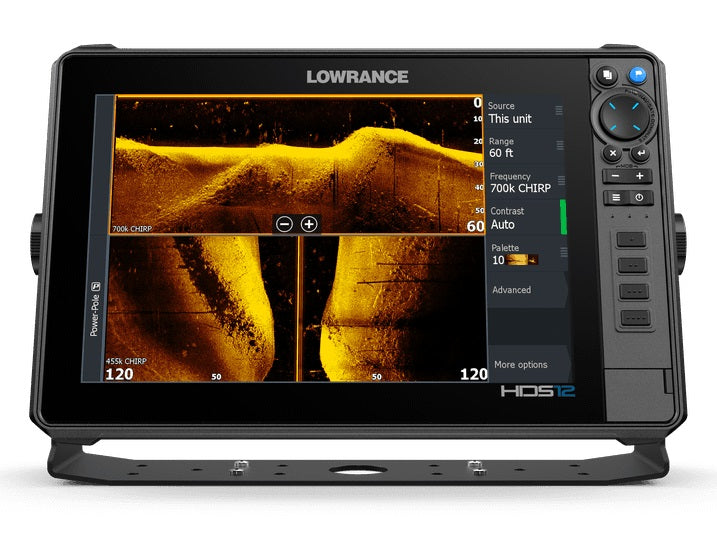

Lowrance HDS12 Pro PRO with C-MAP Discover USA and Canada, ActiveImaging™ HD 3-in-1 Transducer
Model: 000-15987-001- SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
- New! High-definition 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
- New! High-resolution ActiveTarget® 2 Live Sonar ready
- Supports two ActiveTarget Systems for multiple views simultaneously
- Supports FishReveal™ with new SideScan view, as well as Downscan*
- Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap (AMER ONLY)
- Real-time mapping available with C-MAP® Genesis Live.
- Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
- Large programmable keys
- Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
- NMEA 2000®, Wireless and Bluetooth®, connectivity — plus smartphone notifications
- Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.
See more and catch more with the new HDS® Pro, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget® 2 Live Sonar and new, ultra high-definition Active Imaging™ HD. Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™. FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module) ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget® systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.
The better your view, the better your fishing. From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS® Pro delivers a full range of meaningful underwater views that will take your fishing experience from good to great. The SolarMAX™ HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses — a real difference maker on the water. See unmatched clarity on-screen with Lowrance’s superior, high-resolution Active Imaging™ HD sonar and ActiveTarget® 2 Live Sonar technologies.
Spend more time catching fish and less time finding them with pre-loaded C-MAP® charts. Get full-featured vector charts, custom depth shading, high-res coastal coverage and 1-foot contours on more than 19,000 lakes across the U.S. and more than 9,400 in Canada. HDS® Pro also introduces a new chart overlay option, allowing you to view ActiveTarget® Scout Mode or Ghost® 360 trolling motor mode directly on the chart screen. For anglers that want to select their own chart, HDS® PRO supports a wide range of third-party chart options, including C-MAP®, Navionics®, Florida Marine Tracks and more.
HDS® PRO gives you full bow-to-stern networking and expanded control of the Ultimate Fishing System, including new Ghost® Trolling Motor features like Ghost 360, Orbit Waypoint and Anchor at a Distance. With HDS® Pro at the heart of your fishing system, it’s easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options. HDS® PRO offers support for the complete range of top fish-finding technologies — from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Power-Pole® Anchors, Ghost® Trolling Motor and more. Expand your system -- taking advantage of radar, autopilot and NMEA 2000® compatibility -- and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.
The expanded options and capabilities of HDS® Pro give you more ways to customize your boat to better fit your fishing needs. Beyond the 9, 10, 12 and 16-inch screen sizes, HDS® Pro can also be expanded to deliver additional views and features. Simply add an S3100 sonar module and Active Imaging™ Transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat. Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget 2 live sonar displays at the same time. With plug-and-play installation, expanding your fishing has never been easier.
Specifications| Display | |
| Backlight Color | Pure White LED |
| Display Resolution | 1280 x 800 |
| Screen Brightness | >1200 Nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Electrical | |
| Power Consumption max | 3.6A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption min | 2.3A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption typical | 2.3A @ 13VDC with Full Backlight, Sonar on |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12 v DC (10.8-17 V DC) |
| Physical | |
| Dimensions | W x H x D 13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm) |
| Weight | 6.5lb (2.95kg) |
| Compass Safe | 1.6 ft (50 cm) |
| Mounting Type | Panel mount or bracket mount |
| Environment | |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Shock Vibration | 100,000 cycles of 20 G |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Waterproof rating | IPX7 with card door closed |
| Interface | |
| Touchscreen | Full Multi-touch touchscreen |
| Keypad | 8-way directional keypad |
| User programable keys | 4 |
| Buttons | Zoom +/-, Exit, Enter, Menu, Waypoint, Power / Light |
| Connectivity | |
| Bluetooth® | Bluetooth® 5.2 with support for Bluetooth® classic |
| Ethernet Ports | 2 x 100 Mbit, 6 max MFD's on a network |
| Connectivity Wi Fi | Internal 802.11b/g/n and Compatible with WiFi-1 Module |
| NMEA 2000 | 1x Micro-C |
| SD Card Storage | via Power cable |
| Video | |
| Output | None |
| Composite video | 1 xRCA - single channel via an optional adaptor cable |
| HDMI | 1 port for external input (HDMI® 1.4 sink and HDCP) |
| GPS | |
| Correction | DGPS, WAAS |
| GPS Receiver Channels | 16 |
| Position Accuracy | 20m RMS |
| Time to First Fix | 30s |
| Update rate | 10 Hz |
| MFD | |
| Sonar Compatibility | Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub |
| Radar | All HALO Radars |
| Weather | SiriusXM via WM-4 (USA only) |
| AIS | AIS Chart and Radar overlay. Target vessel details. |
| Autopilot | NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway |
| Digital Switching | CZone, Naviop, DDS |
| GPS | 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS |
| Internal Storage | 8.0 GB Internal |
| Multimedia | SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products |
| Sonar Output Power | 1kW |
| Waypoints, Routes, Tracks | 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail |
| HTML5 | Support for third part HTML apps |
| Autopilot Maneuvers Turn Patterns | Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S |
| Steering Modes | Course, Heading, Waypoint, Power Steer |
What's in the Box:
- HDS12 Pro Display
- Lowrance Power/0183 Cable
- HDS-12 LIVE/PRO Bracket and Knobs
- HDS-12 LIVE/PRO Suncover
- DISCOVER - NORTH AMERICA
- ActiveImaging™ HD 3-in-1 Transducer
