Description

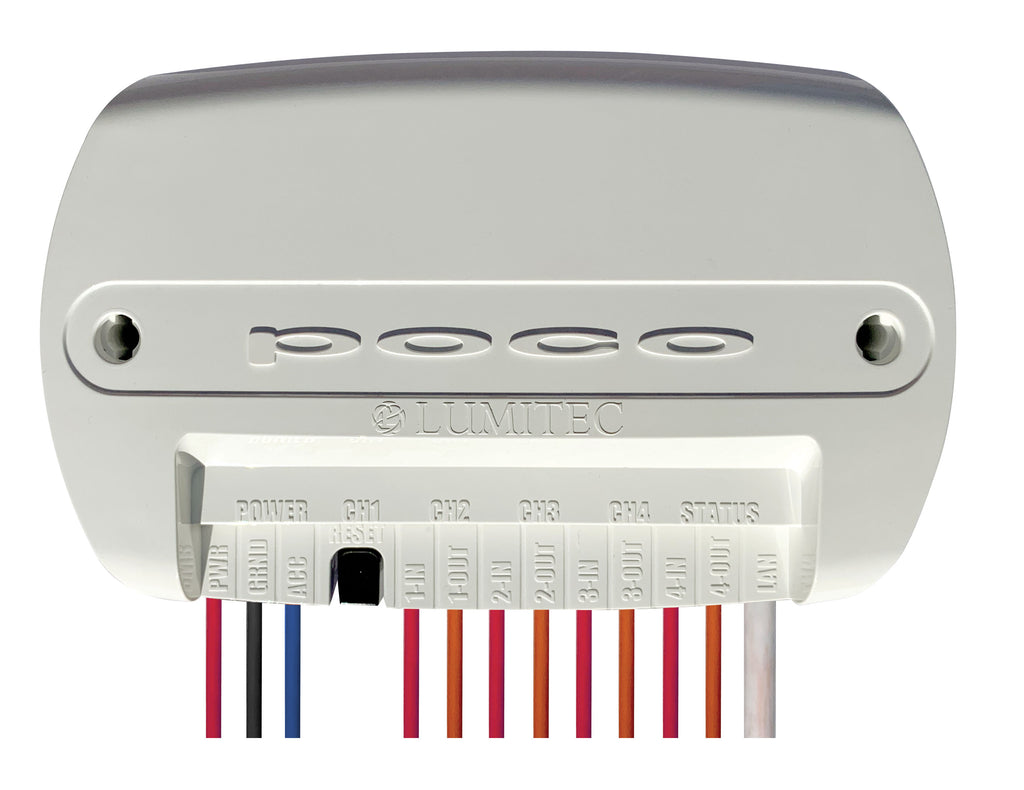

Lumitec Poco 3 Digital Lighting Control Module
Model: 101699Poco 3 Digital Lighting Control delivers powerful, low-cost, on-board lighting control through a compatible MFD or connected smart device and a simple, easy to install control module.
Suitable for new builds or refits, the Poco 3 Control Module is compact and completely sealed. Because it replaces physical circuits, wires, and switches, builders will often find that they can save money while offering their customers the sophisticated control previously found only on high end yachts. When installed with Lumitec’s PLI-enabled lights, even more functionality is unleashed — precise color selection and intensity, custom lighting scene creation and multiple ‘virtual circuits’ on a single channel, allowing aftermarket installers to add lights and improve on-board lighting designs without adding any additional home-(wire) runs.
Poco 3 is compatible with the Pico S8 module which provides the ability to assign Poco virtual switch commands to physical mechanical switches (up to 8 max). This means that your MFD can remain on a dedicated screen, or even be turned off, and a physical switch will activate the virtual switch command through the Poco system (requires Pico S8 module).
Specifications| Finish / Housing | White |
| IP Rating | IP67 |
| Max Amp/ch | 10A |
| Number of Channels | 4 |
| Op. Temp F/C | -31/35 to + 131/55 |
| PLI Enabled | Yes |
| Timed Toggled Protocol (TTP) | yes |
| UL Certified | No |
| Voltage | 10vDC-30vDC |
| Dimension D x W X H | 1.24 in x 5.5 in x 3.5 in |
