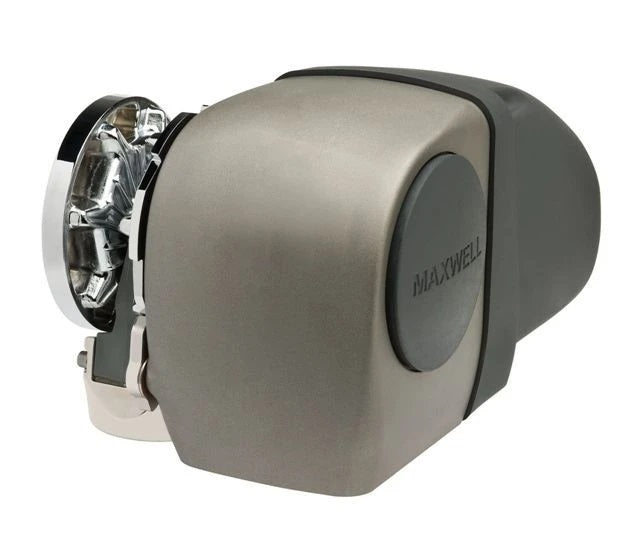

Maxwell Hrc10-10 Free Fall 12v Horizontal Windlass For 3/8"" Chain & 5/8"" Line

Maxwell HRC10-10 12V Horizontal Windlass for 9/16"" Chain an 5/8"" Line

Model: HRC101012V

The HRC10 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell’s previous, fully automatic rope/chain anchor winches. The all new HRC10 fully automatic horizontal windlass series is designed to effortlessly retrieve and deploy 10 mm (9/16") and 10 mm (3/8") short link chain and 14 mm (9/16") and 16 mm (5/8") three strand or 8-brait (plait) rope.

Specifications

Drum	No
Motor (W)	1000
Maximum pull/lift (kg)	700
Chain short link (mm)	10mm
Rope	16mm, 5/8""
Voltage (V)	12vDC

What's in the Box:

• HRC10-10 Windlass
• Circuit Breaker
• Reversing Solenoid 12v
• Up/Down Switch Panel
• Clutch Release Handle
