Description
MUST BE REMOVED FROM BOAT AND CHARGED INDOORS ONLY! Do not modify battery or charger. Only charge with supplied 16.8V charger. Please see LiFePO4 batteries if you want to charge on board or with waterproof 12.8V on board style chargers.

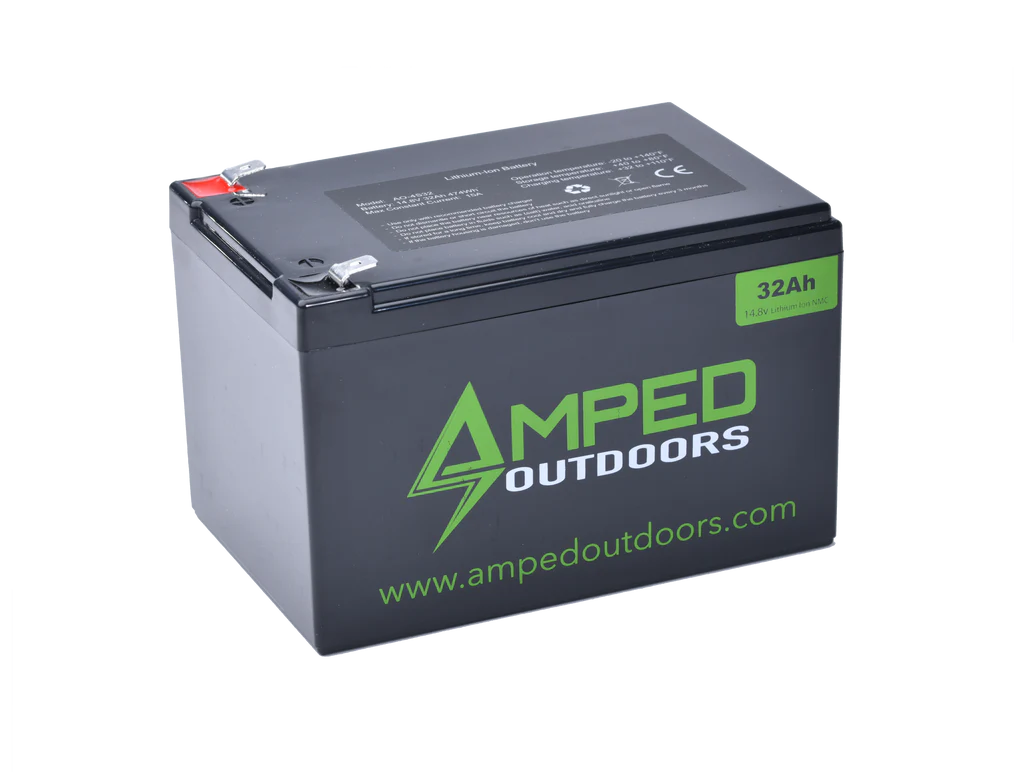

Amped Outdoors is once again changing the way you outdoors! Our new 32Ah (474Wh) 14.8V NMC Lithium Ion Battery is the highest capacity and longest lasting battery designed specifically for our advanced fishing electronics of today. Running out of power is no longer an issue when running high current electronics of today.
Why 14.8V NMC Lithium Ion? Since most of our fishing electronics today are made to operate up to 17+ volts, this battery has a working voltage of 16.8V when fully charged and 12V when fully depleted. That means you have the most usable capacity and zero worries of low voltage poor returns/images from your electronics. Unlike the competition selling similar NMC batteries (Usually 11.1V), our batteries use only the best NMC Lithium from Japan. Instead of getting 300-400 charge cycles with NMC from others, Amped Outdoors NMC will give you 800-1000 Charge cycles and a longer life expectancy.
This model is the same size as the 20Ah LiFePO4 Amped Outdoors Battery and Garmin 12Ah SLA battery. Will fit all Garmin Livescope/Panoptix Products! Please click on the brand link below for detailed operating times and compatibility. Brands listed below will work with 14.8V NMC Lithium!
Contents:
- 32Ah Lithium Battery

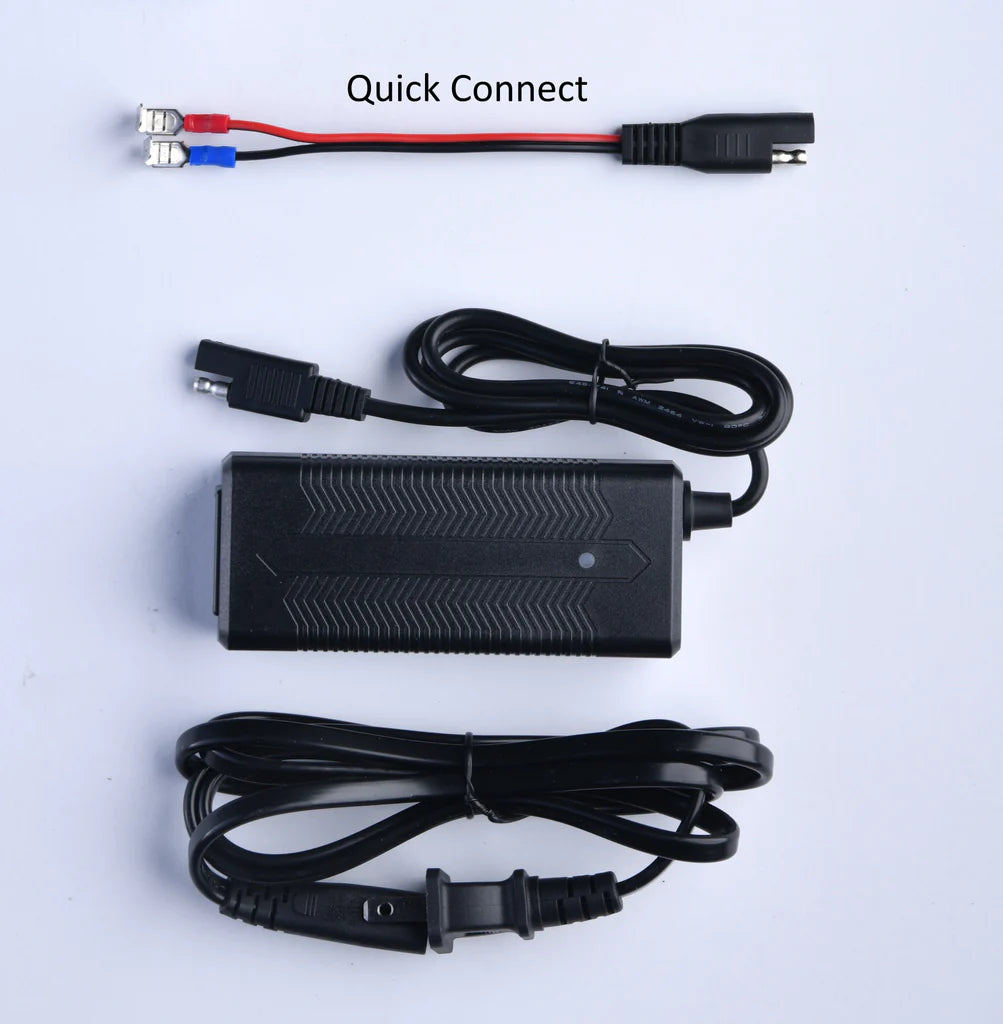

- 16.8V Charger (Use with 14.8V Amped Outdoors Battery Only!)
- User Guide
Battery and BMS specifications:
Actual Voltage: 14.8V
Nominal Capacity: 32AH
Discharge Cut-Off: 12V
Charge Cut-Off: 16.8V
Charge Current: 15A Max
Cont. Discharge: 15A Max
Peak Discharge: 15A Max
Charge Temperature: 32F to 110F
Operation Temperature: -20F to 140F
Charge Method: CC/CV
Life Cycle: 800-1000
Terminal Type: Spade - F2 Connectors
Weight: 4lb 13oz
Dimension: mm - L*W*H: 150*99*95, Inches - 5 7/8 x 3 29/32 x 3 5/8
