Description

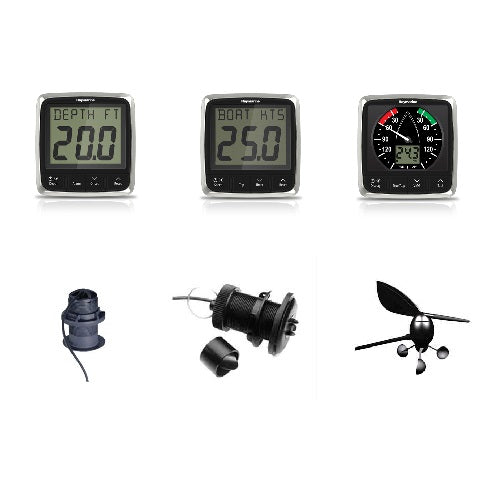

Package Includes:
- (3) Displays: (1) i50 Depth, (1) i50 Speed and (1) i60 Analog Wind
- (1) P19 Transducer (M78713-PZ-A) and 45 feet of cable
- (1) ST800-P120 Transducer (E26031) and 45 feet of cable
- (1) Short Arm Masthead Wind Transducer (E22078) and 98.4 feet of cable
-
Note: No other SeaTalk ng cables are included
- You will need to purchase the SeaTalk ng backbone cables (According to the length needed)
i50 Instrument Features:
- The i50 instruments are designed to complex the all new Raymarine cSeries and eSeries multifunction displays
- Excellent viewing angles for both day and night conditions and simple, push-button controls make the i50 instruments extremely easy to see and use
- Large numerals and digits
- Red backlighting for improved visibility
- SeaTalk and SeaTalk ng interfaces NMEA 2000 (compatible) interface
- Built-in transducer interface
- 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
- Large controls for ease of use at sea Low power consumption
- Multiple data source support eliminates potential data conflicts
Specifications:
- Nominal Voltage: 12 Volt DC
- Operating Voltage Range: 10 - 16 Volt DC
- Power Consumption: Typically <1 Watt (display only) and 2.4 Watt maximum with transducer connected
- Current Consumption: 45 to 65 mA (display only) and 200 mA maximum with transducer connected
- Operating Temperature range: -20° C to +55° C
- Storage Temperature: -30° C to +70° C
- Relative Humidity: Up to 93%
- Waterproofing Standard: IPX6
- Connections: (2) SeaTalk ng and transducers
- Conformance: Europe 2004/108/E
i60 Instrument Features:
- Displays Analog Wind speed, direction, Beaufort, max wind speed, VMG, and tack
- The i60 Wind system comes with the short arm masthead with 30 meters or about 95 feet of cable
- The i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays
- Fits Raymarine ST60+ Footprint
- Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use
- They are also simple to install thanks to the front-mount design
- Large analogue dials
- Red backlighting for improved visibility
- SeaTalk and SeaTalk ng interfaces NMEA 2000 (compatible) interface
- Built-in transducer interface
- 110 mm x 115 mm footprint identical to older Raymarine ST60+ instrumentation
- Large controls for ease of use at sea
- Low power consumption
- Multiple data source support eliminates potential data conflicts
- Front mounted design for simple installation
Specifications:
- Nominal Voltage: 12 Volt DC
- Operating Voltage Range: 10 - 16 Volt DC
- Power Consumption: Typically <1 Watt (display only) and 2.4 Watt maximum with transducer connected
- Current Consumption: 45 to 65 mA (display only) and 200 mA maximum with transducer connected
- Operating Temperature range: -20° C to +55° C
- Storage Temperature: -30° C to +70° C
- Relative Humidity: Up to 93%
- Waterproofing Standard: IPX6
- Connections: (2) SeaTalk ng and transducers
- Conformance: Europe 2004/108/EC
